Anti-corrosion industrial pumps suitable for solvents, hydrocarbons, dangerous and inflammable liquids

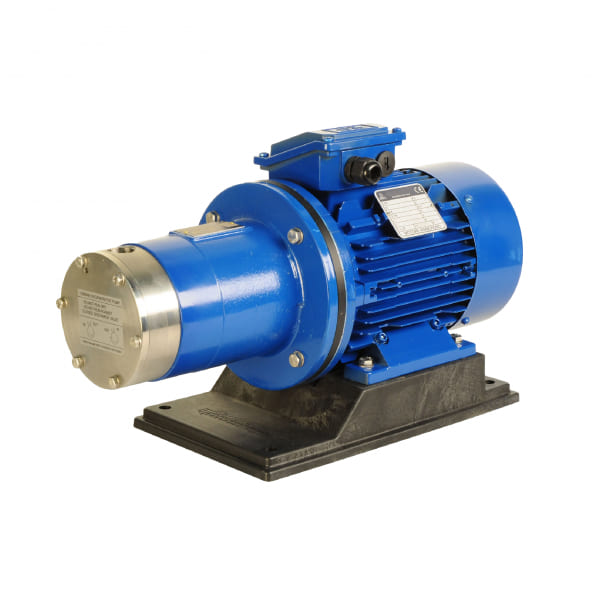

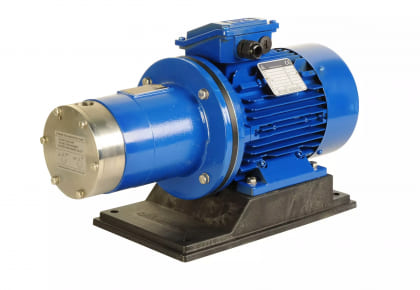

The HTA series magnetic drive regenerative turbine pumps are manufactured in AISI 316 stainless steel and are suitable for solvents, hydrocarbons, flammable and hazardous liquids.
The magnetic drive system reduces the risk of leakage and emissions and lowers maintenance costs. Torque transmission occurs through magnetic couplings without mechanical seal, ensuring hermetic safety and efficiency.
The pumped liquid must be clean and free of suspended solids.
HTA pumps are also available in ATEX version for Zone 1 (II2G) and Zone 2 (II3G) (model EM-T AISI 316).

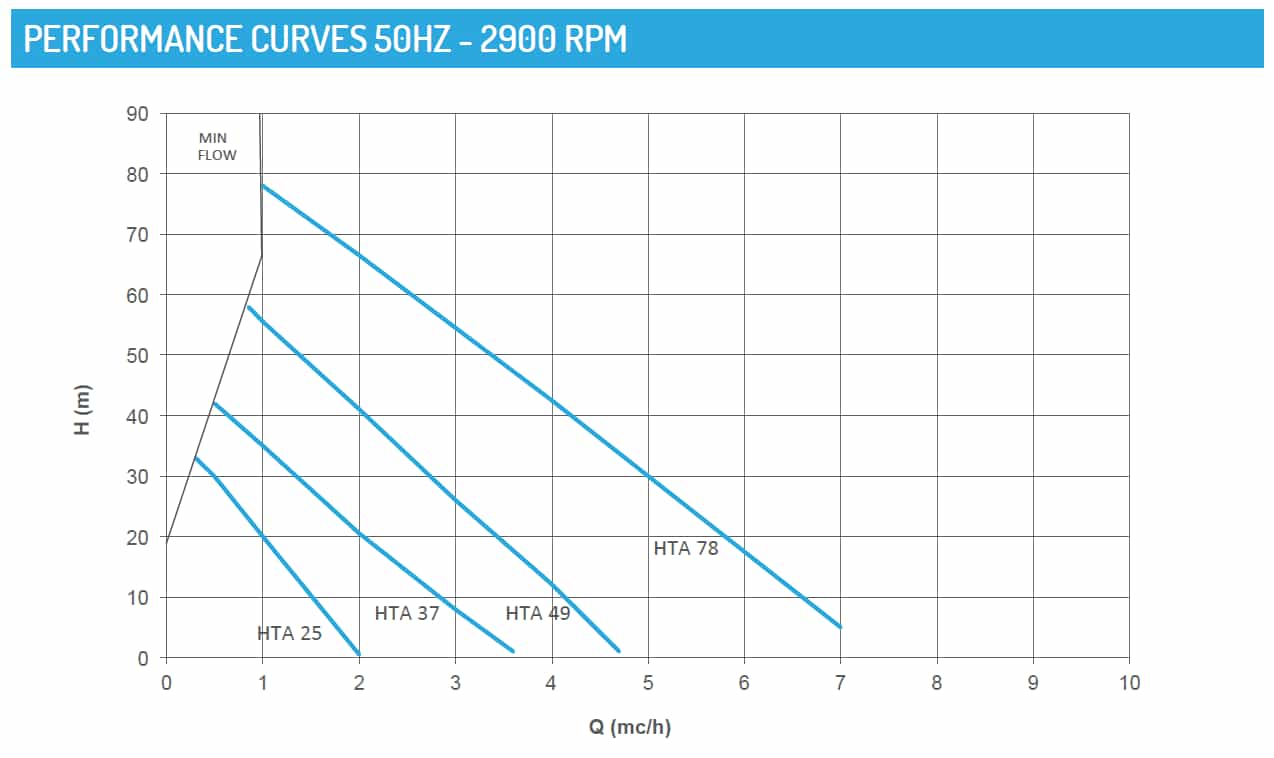

* The head and flow of the pump refer to the performance with water at room temperature. Should liquids at high temperatures and with high viscosity and density be pumped the performance has to be calculated accordingly. The electric motor should be selected on the basis of the viscosity and the specific weight given by the customer.
*For any information and quotation you can fill in the online form or send an email to info@gemmecotti.com. Our commercial office will select the pump suitable for your needs.
The HTA series pumps are manufactured in AISI 316 stainless steel, ensuring excellent mechanical strength and corrosion resistance.
They are compatible with solvents, alkalis and organic acids, making them suitable for demanding industrial applications.
In the HTA series regenerative turbine pumps, the suction and discharge ports can be reversed by changing the motor rotation direction, allowing greater installation flexibility.
HTA pumps are equipped with NdFeB magnets, capable of generating high magnetic torque.
Advantages of magnetic drive pumps:
The static shaft used in HTA magnetic drive turbine pumps is manufactured in Hastelloy C276 (HC276), a highly resistant nickel-based alloy.
This material ensures maximum structural stability and superior resistance to aggressive and corrosive chemicals.
Magnetic drive pumps are engineered with a dedicated sealless configuration, making them ideal for handling acids, chemicals, corrosive and hazardous liquids. Their suitability for aggressive media is ensured by the high chemical resistance of the construction materials and by the complete elimination of leakage and fugitive emissions.
The design is mechanically simple and highly reliable, requiring minimal maintenance and allowing significant savings throughout the pump’s lifetime in terms of repairs, spare parts and reduced machine downtime.
This pump technology is not suitable for liquids containing solids. The pumped fluid must always be clean and free of suspended particles to ensure proper and safe operation.
For over 30 years GemmeCotti has been designing and manufacturing chemical pumps for acids, aggressive and corrosive liquids.
