Magnetic drive pumps feature a sealless construction, specifically developed for handling corrosive, hazardous and aggressive liquids. Their design ensures high chemical resistance and completely eliminates the risk of leakage and fugitive emissions, since no mechanical seal is required.
The overall structure is mechanically simple and highly reliable, resulting in minimal maintenance requirements and significant cost savings over the pump’s lifetime in terms of repairs, spare parts and reduced machine downtime.

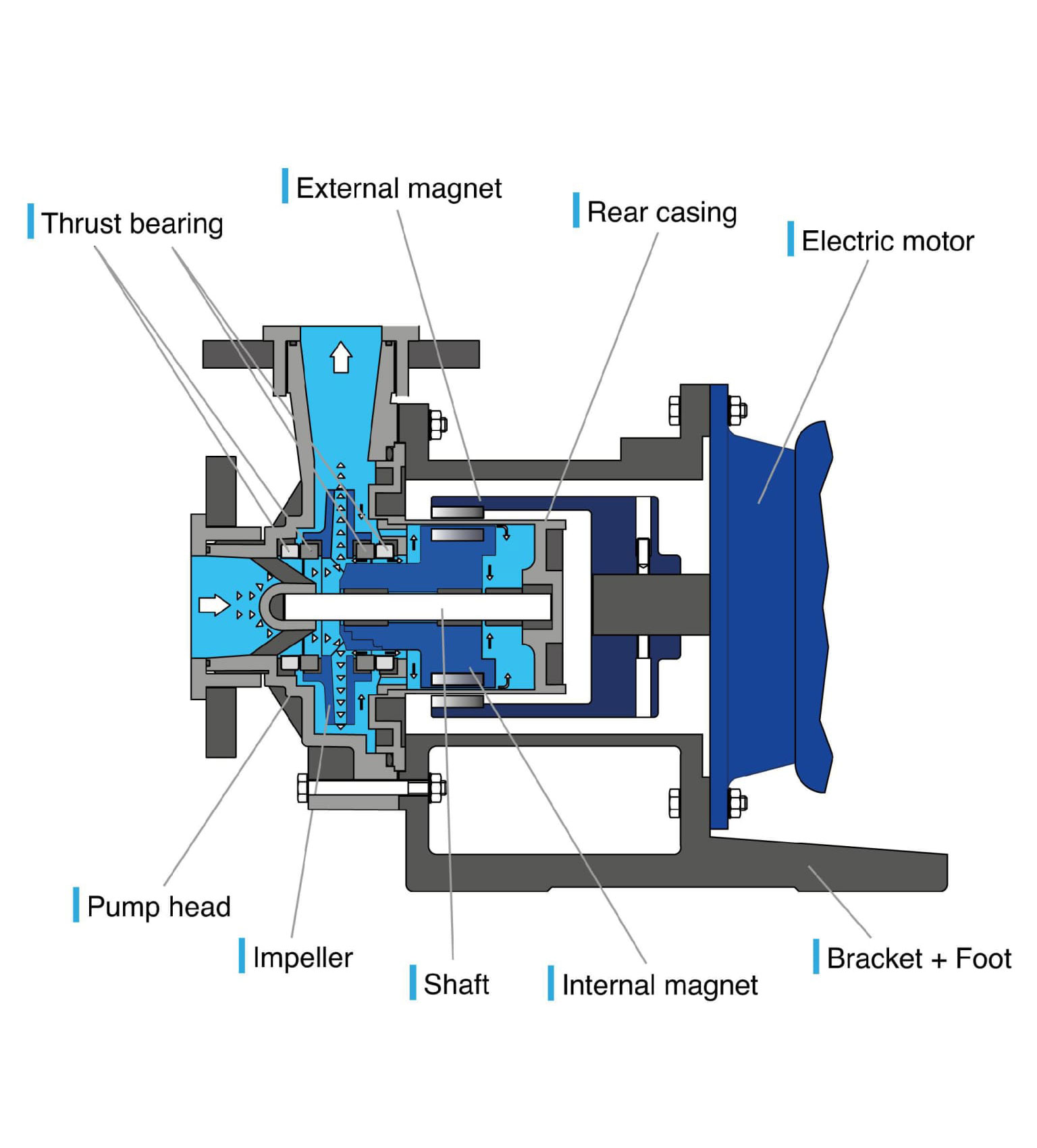

In a magnetic drive pump, an external magnet assembly is directly connected to the shaft of the electric motor.
The operating principle of a magnetic drive pump is based on magnetic coupling transmission.
The rotational motion generated by the motor is transferred synchronously to the rotor, composed of the internal magnet and the impeller, through the magnetic field created by the external magnet.
The external magnet and internal magnet do not physically touch. Torque transmission occurs exclusively through the magnetic field, ensuring contact-free power transfer.
The impeller, which is integral with the internal magnet, rotates around a stationary shaft, allowing the pumped liquid to flow through the hydraulic section of the pump.

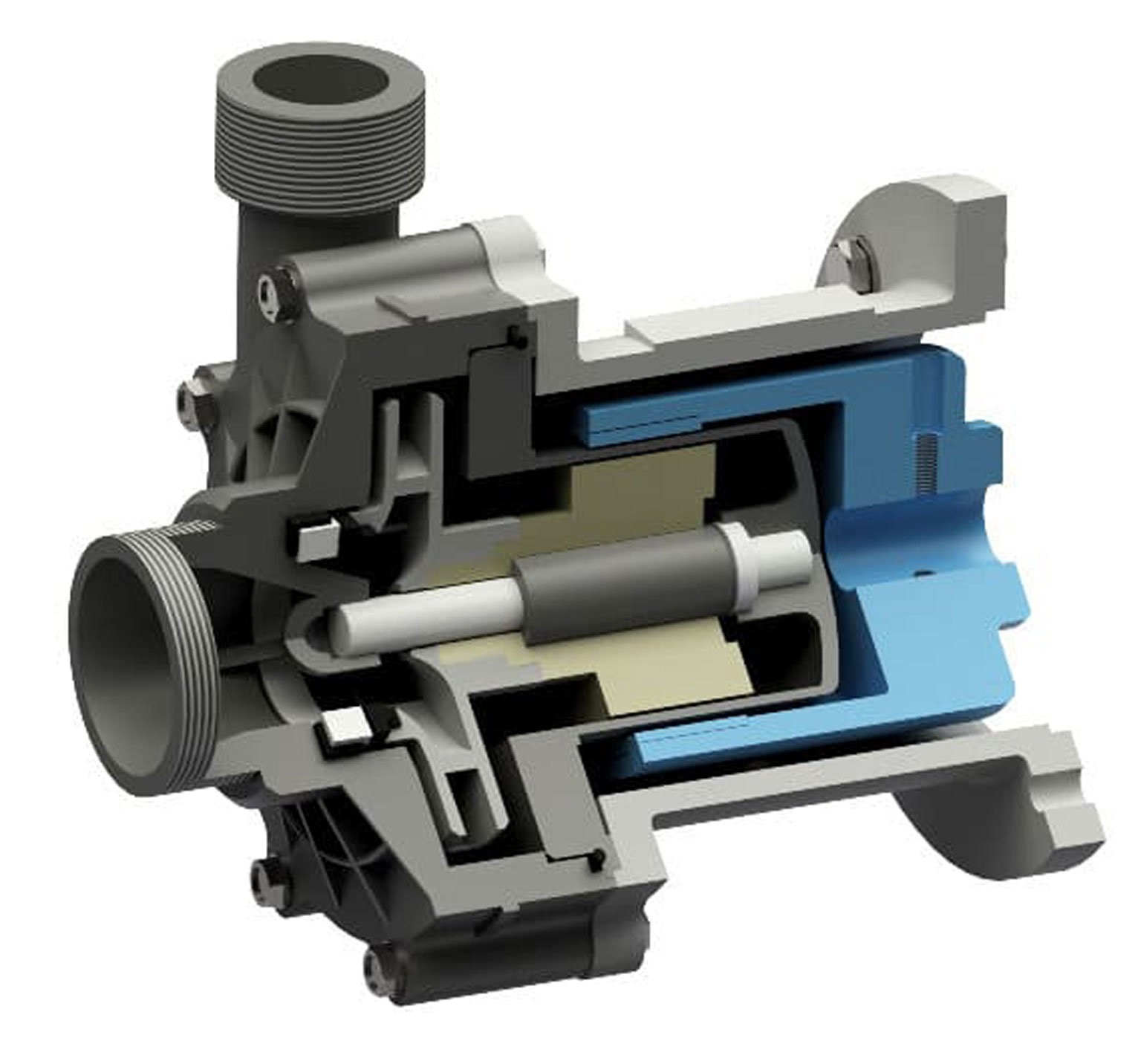

The entire hydraulic part is hermetically sealed. Between the external and internal magnet assemblies, there is a rear containment casing, which is fixed to the pump casing and acts as a barrier. This containment shell prevents the pumped fluid from escaping to the outside, guaranteeing a fully sealed and safe pumping system.
The sealless design guarantees total containment of the pumped liquid, eliminating leakage and fugitive emissions. This is essential when handling corrosive chemicals, flammable, explosive or hazardous fluids, ensuring maximum protection for both operators and the environment.
GemmeCotti magnetic pumps comply with strict environmental and safety standards and prevent the loss of valuable liquids, reducing operating costs.
Thanks to their simple construction and the absence of mechanical seals, magnetic drive pumps are highly reliable and require minimal maintenance.
Under normal operating conditions, they can run for many years without major repairs. Maintenance is generally limited to periodic checks of O-rings and bearings.
The magnetic coupling system eliminates the need for motor-pump alignment, making installation easier and faster.
The robust design of GemmeCotti magnetic pumps allows operation in demanding industrial environments, especially for transferring acids, bases and solvents in sectors such as chemical, petrochemical, pharmaceutical, electronic and electroplating industries, where high safety standards are required.
It is important to note that magnetic drive pumps are suitable only for clean liquids without suspended solids, as the presence of particles may damage internal components.
For over 30 years GemmeCotti has been designing and manufacturing chemical pumps for acids, aggressive and corrosive liquids.
