PVA – Cantilever Vertical Centrifugal Pumps

  • Home
  • PVA – Cantilever Vertical Centrifugal Pumps
Vertical centrifugal cantilever pumps

Industrial pumps suitable for pumping corrosive liquids with solids

  • Materials available: AISI 316.
  • Max flow: 24 m3/h. Max head: 26 mlc.
  • Fume labyrinth seal. A combined system of labyrinth, rings and PTFE lip seal guarantees tightness against gas and vapours.
  • Impeller with low axial thrust.
  • Suitable for corrosive liquids containing solids.
  • Especially designed for use in the production of printed circuit boards (PCB).
    AISI 316 version is suitable for potassium
    permanganate applications at 90°C.
    Titanium version is suitable for “Black Oxide”.
  • Two different types available: PVA 1 for tank transfer and PVA 2 used as a boosting pump.
    PVA 2 model should be installed in the same tank where PVA 1. This provides a tight system which prevents any leaks.
pva-vertical-centrifugal-cantilever-pump

The PVA series vertical cantilever pumps are manufactured in AISI 316 stainless steel and are suitable for handling corrosive liquids containing suspended solids.

Specifically developed for printed circuit board (PCB) manufacturing processes, PVA pumps are equipped with a combined sealing system consisting of labyrinth seals, sealing rings and lip seals, ensuring effective tightness against gas and vapor emissions.

Technical Data

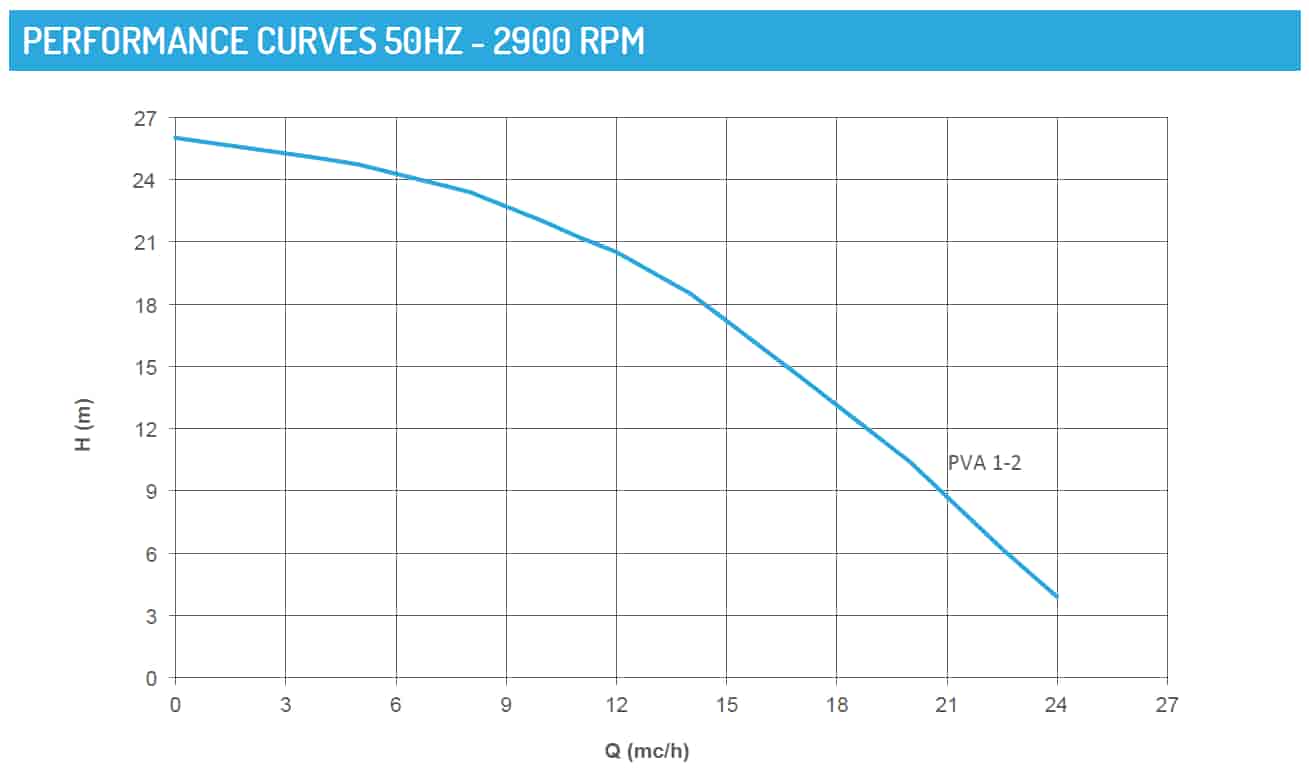

curves-pva-vertical-centrifugal-cantilever-pumps

* The head and flow of the pump refer to the performance with water at room temperature. Should liquids at high temperatures and with high viscosity and density be pumped the performance has to be calculated accordingly.

Download

Pdf Catalogue
Use and Maintenance Manual
Technical Data 50 Hz

For over 30 years GemmeCotti has been designing and manufacturing chemical pumps for acids, aggressive and corrosive liquids.
